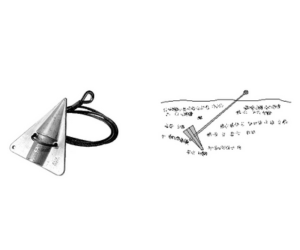

Delta Anchor
Galvanized to BS EN ISO 1461:1999
The Delta Anchor is a triangular-shaped alloy casting or forging with a wire cable fitted through 2 holes in the body. The design of the Delta Anchor combines optimum installation characteristics with heavy-duty performance capabilities to give a dependable earth anchoring system at reduced installation costs.
The slender design shape gives minimum resistance when driven into the ground and then when an upward force is applied to the attached cable the anchor turns perpendicular to the cable for maximum holding power. A hole in one corner permits the fitting of a secondary bond which can be used to recover the anchor for re-use where ground conditions permit.
Holding capacities are the average values obtained in a series of tests. Experience has shown that the nature of soil and depth of anchor govern the ‘pull out’ loads and therefore we avoid giving values for the Delta Anchor.

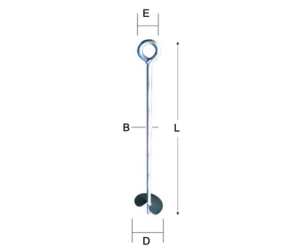

Screw Type Ground Anchor
Galvanized to BS EN ISO 1461:1999.
T Ground Anchor
Finish 1 coat of red oxide primer.
