Our focus on innovation and quality has led us to become a leading name in the telecom industry, and our Mounting and Steelwork solutions stand as a testament to our commitment to excellence.
Our Mounting and Steelwork solutions encompass a wide spectrum of solutions designed to elevate the performance and reliability of your telecom infrastructure. Our extensive product lineup includes aerial support mount brackets, poles, antenna support mounts, channel stand-off kits, mounting brackets, and much more. All our products are galvanised to ensure durability, meeting the industry standards for strength and reliability.
Whether you need to install antennas, support poles, or create secure mounting structures, our telecom mounting and steelwork solutions have got you covered. With various sizes and configurations available, you can find the perfect fit for your specific project requirements.
Explore our product range, and discover how we can be your trusted partner for reliable and efficient telecom mounting and steelwork solutions.

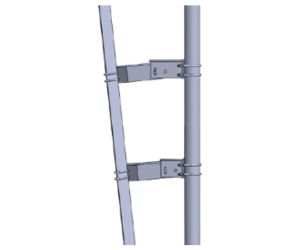

Aerial Support Mount Bracket
Galvanized to BS ENISO 1461:1999. 1500mm between brackets, up to 3 degrees rake angle.
Works with standard antenna poles 2500mm long. Uses standard our Angle stand off brackets with antenna support brackets.
.png)
Aerial Support Mount Pole
Galvanized to BS ENISO 1461:1999.
Standard antenna poles 2500mm long. Works with 1500mm between brackets, up to 3 degrees rake angle. Uses standard our Angle stand-off brackets with antenna support brackets.
.png)

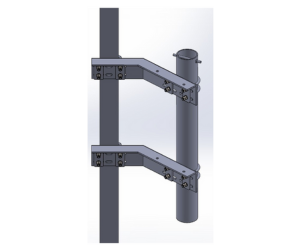

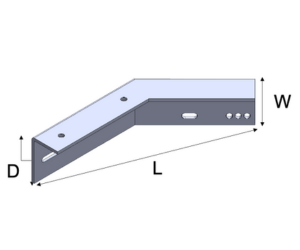

Antenna Support Mount Type Vertical Pole Leg
Material 8mm S355J2 BS EN 10025-2. Galvanized to BS ENISO 1461:1999.
Use 12mm fixings. Mainly used on Angle tower legs. Either suits the tower leg range of 33.7-139.7mm or 100-220mm and both take 48.3-114.3 antenna poles.
8mm Spreader Plates spread the load across the slots to make it stronger. Can take up to 3° rake out. Supplied as a kit (2 x brackets, 8 spreader plates, plus fixings) or individually. Order Antenna poles separately.
.png)

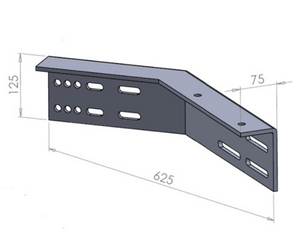

Antenna Support Mount Type Vertical Pole Bracket
Material 8mm S355J2 BS EN 10025-2. Galvanized to BS ENISO 1461:1999.
Use 12mm fixings. Mainly used on Angle tower legs. Either suits the tower leg range of 33.7-139.7mm or 100-220mm and both take 48.3-114.3 antenna poles.
8mm Spreader Plates spread the load across the slots to make it stronger. Can take up to 3° rake out. Supplied as a kit (2 x brackets, 8 spreader plates, plus fixings) or individually. Order Antenna Pole separately.
.png)

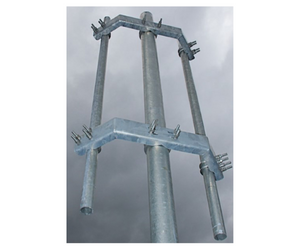

Double Cranked Channel Stand Off Kit
Heavy duty channel brackets with notch-outs to ensure pole stability 2.5m standoff pole & appropriate fixing supplied with each kit.
Order U/N bolts separately to suit structure leg size.

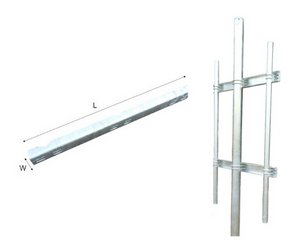

Double Straight Mount
Material 6mm Plate BSEN 10025-2004 Grade S355J2 Galvanized to BS EN ISO 1461:1999.
Takes 48.3Ø to 114.3Ø antenna mount poles Antenna separation 1 metre. Suits up to and including 139.7 tower leg.
Typical Assembly-2 brackets and poles. Bracket only. Order Antenna Pole and long-leg U bolts separately.
.png)

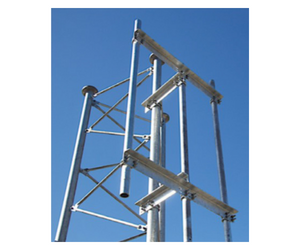

Double Standoff Assembly
Galvanized to BS ENISO 1461:1999.
Designed to double up on existing antenna mounts. Antenna separation 1070mm./ This versatile double antenna mount is suitable for any size of antenna. When used with our Universal Stand Off Assembly kit, this will ensure the antenna is vertical.
Suits 60.3 and 76.1 antenna poles. Order pole and fixings separately.
.png)

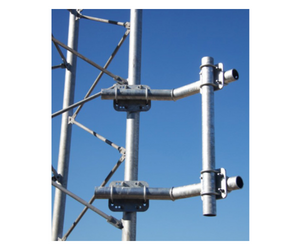

Universal Vertical Stand Off Assembly
Galvanized to BS EN ISO 1461:1999 76.
1Ø cranked tubes for dish mounts as illustrated 48.3Ø cranked tubes for aerial fixings. This unique innovation dish/aerial mount enables the mounting pole to be fitted vertically on structures with rakes of up to 10. This product is fitted on structures across the country.
Please specify the length of the antenna pole required and leg size to ensure correct fixings are included in the kit.
.png)

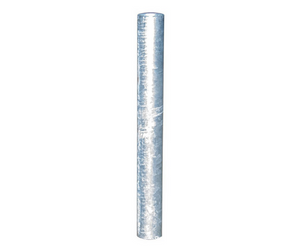

Galvanised Antenna Poles
Hot Formed CHS S355J2H BS EN 10210. Galvanised to BS EN ISO 1461.
‘T’ Bar fitted on request. All dimensions in millimetres (mm). Lengths are available in 500mm increments from 1m to 4m (+/-15mm). However, any length can be ordered and will be supplied trimmed from standard full-length 7.5m stocks.
To order the required length, suffix to appropriate Part No. i.e. 88.9 x 5.0 pole 5m long = 3/AP/304/5000 3.2 and 4.0 wall thickness tube available to order. Substitute the number 1 for 3.2 wall i.e. 3/AP/101/1000 and 2 for 4.0 wall i.e. 3/AP/201/1000.

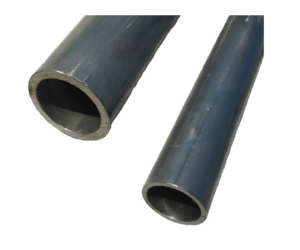

Aluminium Tube
Aluminium Tube to BS1139 Material grade 6082-T6
Quote up to 6m long. Quote length required.

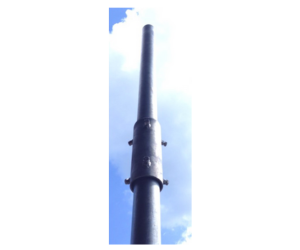

Extension Pole Socket
Heavy-duty channel brackets with notch-outs to ensure pole stability
2.5m standoff pole & appropriate fixing supplied with each kit. Order U/N bolts separately to suit structure leg size.

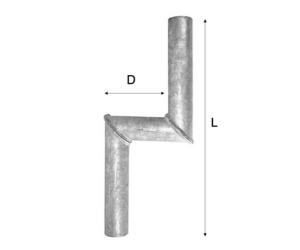

Parallel Stand Off Poles
Material S355J2H BS EN 10210 - Galvanised to BS EN ISO 1461.
Enables poles to be attached in close proximity (200mm).

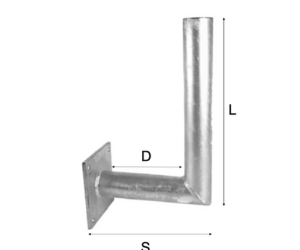

Wall Mounting Pole
Galvanised to BS EN ISO 1461. Material 10mm S355J2 BS EN 10025-2 & S355J2H BS EN 10210.
Use 12mm fixings.

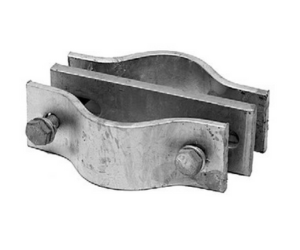

Aerial Parallel Clamps
Galvanised to BS EN ISO 1461. Material 10mm S275JR BS EN 10025-2.
The parallel clamp is commonly used for fixing vertical aerials to vertical poles or just pole to pole.

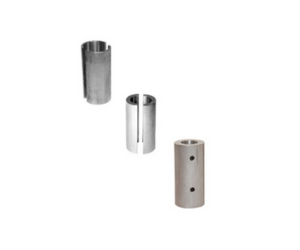

Coupler Reducers
Reducers are fitted to aerials to increase their diameter to enable clamping in the couplers.
Material Aluminium 6063.

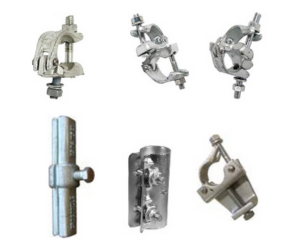

Tube Couplers
Drop forged* ‘scaffold’ fittings for 48.3 dia tube.
*2/TC/111 Pressed Steel

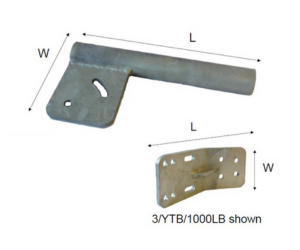

Aerial Tilt Brackets 48Ø Pole
Galvanised to BS EN ISO 1461:1999.
48.3Ø tube. Stand off 200mm Order 2 x bolts per bracket.
This economical tilt bracket enables the rake of the structure to be taken out up to 15 degrees up or down from the vertical to ensure horizontal adjustment of the aerial.

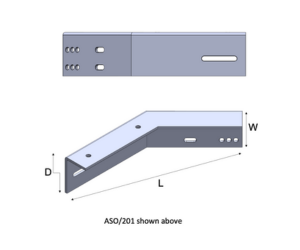

45°Angle Stand Off Bracket
Galvanised to BS EN ISO 1461:1999. Material 8mm S355J2 BS EN 10025-2.
Use 12mm fixing. Mainly used on Angle tower legs.
Using the standard fixing as shown, the brackets provide vertical fixing points easily and economically.

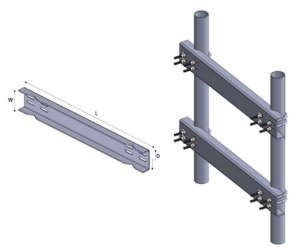

Channel Stand Off
Galvanized to BS EN ISO 1461:1999 .Material 6mm Plate BSEN 10025-2004 Grade S275JR.
Takes 60.3Ø -76.1Ø– 88.9 Ø or 114.3Ø antenna mount poles. Stand Off 750mm.
Heavy-duty channel brackets with notch-outs to ensure pole stability. Long-legged U bolts for antenna poles required. Order U/N bolts to suit tower leg size

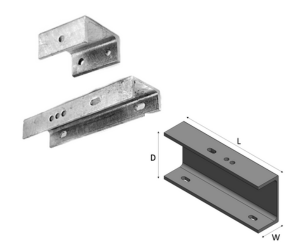

Channel Wall Brackets
Galvanised to BS ENISO 1461 .Material BS EN 10025-2 S355J0.
Channel wall brackets are stocked in two types CWB and CWBX. CWB for 48.3Ø poles using 10mm fasteners and single hole fixing to the wall. CWBX for poles using 12mm fasteners and two slots fixing to the wall.

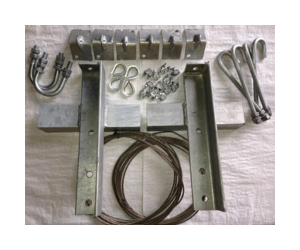

Chimney Lashing Brackets
Galvanised to BS EN ISO 1461:1999. 5-metre lengths of tensioning wire.
Designed to support 48.3Ø aerial pole with no drilling of brickwork.

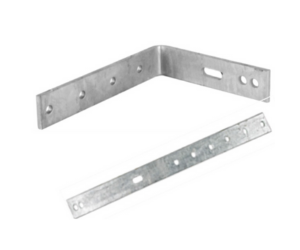

Feeder Brackets
Galvanised to BS EN ISO 1461. Material 50 x 8mm S275JR BS EN 10025-2.
Use 12mm fixings Pitch centres of feeder holes 65mm.

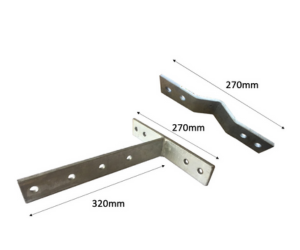

Universal Feeder Bracket Assembly
Galvanized to BS ENISO 1461. Material 50 x 8mm S275JR BS EN 10025-2.
Allows feeders to run within the tower leg. Can be used when tower leg size is unknown as is Universal.
Each kit c/w feeder bracket, clamp and 2 x M12 x 150mm threaded bar.

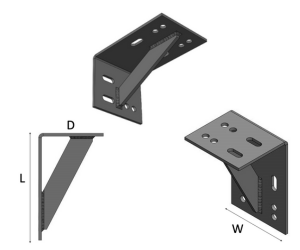

90° Mounting Bracket
Galvanised to BS EN ISO 1461. Material 8mm S355J2 BS EN 10025-2.
Use 12mm fixings. 100mm clearance between tower and pole to avoid existing bracings.

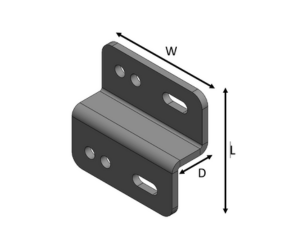

Parallel Stand Off Brackets
Galvansed to BS EN ISO 1461. Material 8mm S355J2 BS EN 10025-2.
Use 12mm fixings. 50mm Stand Off—Enables poles to be attached in close proximity. 100mm Stand Off—Same bracket but provides a bigger stand off

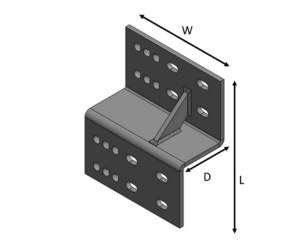

Heavy Duty Parallel Stand Off Brackets
Galvanised to BS EN ISO 1461. Material 8mm S355J2 BS EN 10025-2.
Use 12mm fixings (2 + 2). 100mm stand off.
Suits from and including 33.7—130mm.

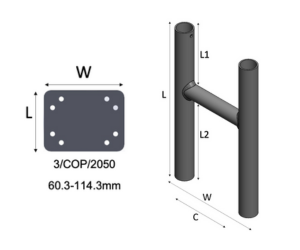

Sloping Pole Bracket Kit
Fitted to any raked pole where equipment such as RRU (Remote Radio Unit) are to be easily and universally fitted.
Each kit supplied comes complete with an H Bracket, Crossover Plate, 2x U Bolts, 2x V Bolts and 2x Vinyl Tube Caps with a fitting range of 60mm-114mm CHS. (Use 12mm fixings).
Our standard sizes are listed below but we can manufacture any size required.

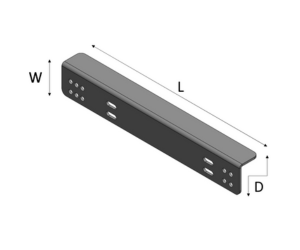

Straight Stand Off Brackets
Galvanised to BS EN ISO 1461. Material 6mm S355J2 BS EN 10025-2.
Use 12mm fixings—Stand off approx. 330mm.
An economical range of brackets for supporting antenna poles, normally used on tubular and circular legs.

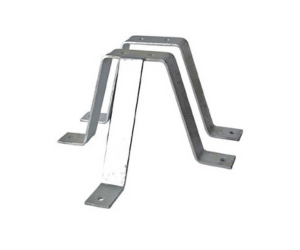

Wall Bracket
Galvanised to BS EN ISO 1461. Material 1000 Series 50 x 6— 2000 Series 50 x 8—3000 up to 15”.
50 x 8—18” & above 50 x 10. S275JR BS EN 10025-2. 48.3Ø aerial pole order 10mm U bolt and fixings. 60.3Ø, 76.1Ø and 88.9Ø aerial poles order 12mm U bolt and fixings.
Wall brackets come in pairs as standard (2 and 3 legs) but can be ordered singularly for special installations. Other sizes to order.
Eco Cross Over Plates
Galvanised to BS EN ISO 1461. Material 10mm S355J2 BS EN 10025-2.
Use 12mm fixings. Select the correct Cross Over Plate from the ‘Series Chart‘.
Download here.

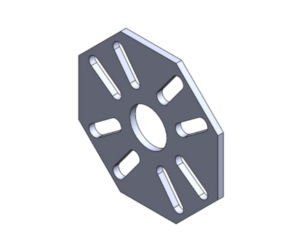

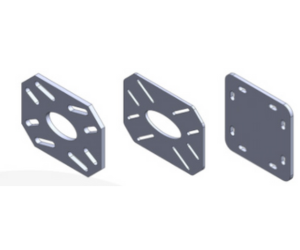

Universal Cross Over Plates - 10mm
Galvanised to BS EN ISO 1461. Material 6mm S355J2 BS EN 10025-2.
Use 10mm fixings.
Universal Cross Over Plates - 12mm
Galvanised to BS EN ISO 1461. Material 10mm S355J2/S275JR BS EN 10025-2.
Use 12mm fixings.

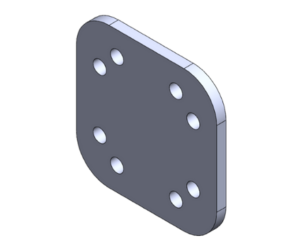

Standard Cross Over Plates
Galvanised to BS ENISO. Material 10mm S355J2 BS EN 10025-2 -1461.
Use 12mm fixings. Cross Over plate to cover a popular range of tubes.

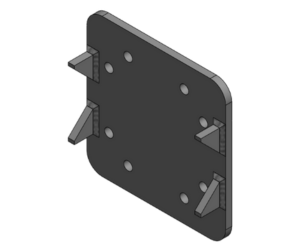

Cross Over Plates with Tube Support - 4 Lugs
Galvanised to BS EN ISO 1461. Material 10mm S355J2 BS EN 10025-2.
This cross over plate incorporates tube location lugs to support horizontal & cross members on assemblies such as face frames.
Use 12mm Fixings. 4 Lugs. Bespoke units can be fabricated to suit individual parent leg sizes.

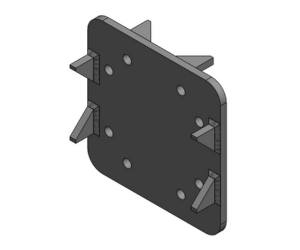

Cross Over Plates with Tube Support - 8 Lugs
Galvanised to BS EN ISO 1461. Material 10mm S355J2 BS EN 10025-2.
This cross over plate incorporates tube location lugs to support horizontal & cross members on assemblies such as face frames.
Use 12mm Fixings. 8 Lugs. Bespoke units can be fabricated to suit individual parent leg sizes.

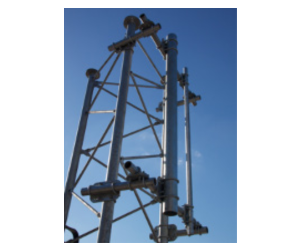

Antenna Face Mount
Fully adjustable poles.
Each face mount is supplied/manufactured to meet the structure’s criteria regarding leg size and rake.
In most instances, these universal face frames can be supplied ‘off the shelf’ as they incorporate parts from our standard range.

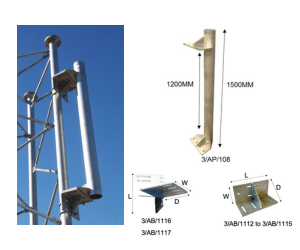

Antenna Leg Mount
Galvanised to BS EN ISO 1461:1999. Leg mounted pole 114.3Ø. Pole 114.3Ø x 1500 Long ~ 1200 Clear Standoff 230mm.
On tower leg rakes (0 - 30) the dish mount pole can be kept in the vertical position by use of the slotted holes in the support brackets. Order leg fixing bolts separately.
Custom made brackets can be made to suit particular rakes. Other sizes available to order.

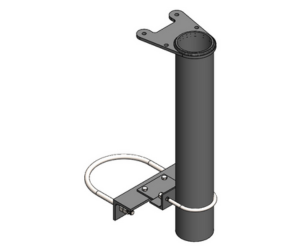

Monopole Dish Mount
Galvanised to BS EN ISO 1461. Material S355J2 BS EN 10025-2.
To suit 219.3 and 168mm diameter tubes.

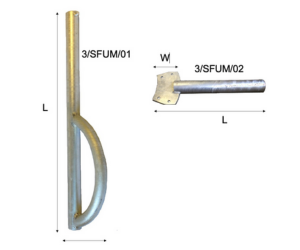

Single Fixing Universal Mount 60Ø Pole
Galvanised to ENISO 1461:1999. 60.3Ø tube. Horizontal or vertical fixing.
Versatile dish mount uses eco cross over plate for easy assembly and only requires 200mm mounting area.
Designed for dishes up to 600mmØ and takes out up to 25 degrees rake in structure.

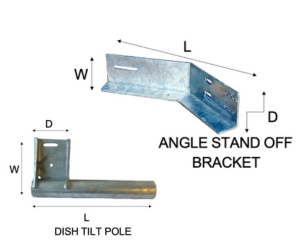

Single Mounting Dish Bracket 76Ø Pole
Galvanised to EN ISO 1461:1999. 76.1Ø tube.
This economical swivel bracket when used with the standard angle stand off bracket allows easy attachment of up to 300mm microwave dishes eliminating the rake angle of the tower.
Identify the series for the leg from the chart at the rear of the catalogue. Order two leg fixing bolts per kit for the series.

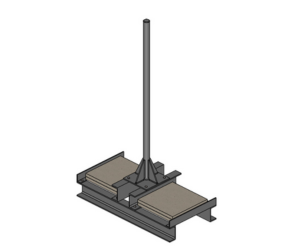

Mini Mount
Galvanised to BS EN ISO 1461:1999.
Quick and easy to install. Ideal for restricted roof space No drilling required.
Foot print 1200 x 600. Built in trays for additional ballast if required polystyrene foam base.

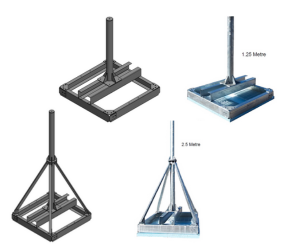

Roof Mount
Galvanised to BS EN ISO 1461:1999. 2.5 metre pole as illustrated. 1.25 metre pole without stays. 76Ø or 114Ø support poles standard.
Lightweight construction. Concrete ballast not supplied Foot print 1200 x 1200.
Assembled from easily handled parts the frame is ideal when installation prohibits fixing. Comprising of an extruded polystyrene foam base and an integral mesh support for concrete block ballast. The frame can be supplied with the top support pole.

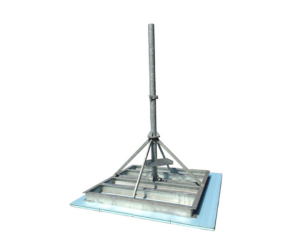

HD Roof Mount
Galvanised to BS EN ISO 1461:1999. 3.1 metre pole. 114Ø support poles standard.
Concrete ballast not supplied. Foot print 2000 x 2000.
Assembled from easily handled parts the frame is ideal when installation prohibits fixing. Comprising of an extruded polystyrene foam base and an integral mesh support for concrete block ballast. The frame can be supplied with the top support pole to customer requirements.
Access Step
Galvanised to BS EN ISO 1461:1999. Material Grade BS EN 10025-2 S355J2.
Optional Extra: bolt unit to access to top of pole. Kit comprises of the step and two U bolts-4/PMA/215.
Order separately.

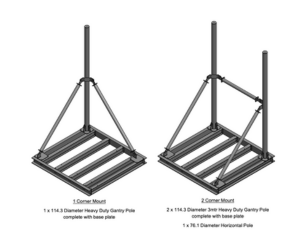

Corner Roof Mount
Corner Mount enables close proximity to the edge of roofs to allow unimpeded antenna coverage. Choice of either 1 corner or 2 corner Mount.
Complete with fixings and polystyrene roof protection which prevents penetrating rooftops.
Concrete ballast not included, order separately if required.
400S Tower
Galvanised to BS EN ISO 1461:1999.
Modular 4-side lightweight tower. 3m sections up to a max of 12m. Max headload 30kg. Tower - Complete with base grillage and all fixings.
Off-the-shelf supply. Full range of accessories, and optional fittings available.
Windstock Pole Mast
Working in partnership with Windsock Company, we offer Windsock equipment for all types of airfield and industrial applications, including windsocks and masts, with and without windsock illumination.
Their standard range of mast designs has been used throughout the UK and beyond - both onshore and offshore. In addition to standard design equipment masts can be made to suit specific site conditions or special configurations.
