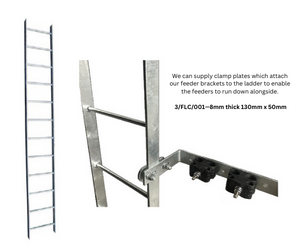

Climbing Ladders
Galvanized to BS 6949 - 1988.
Uncaged ladder over 2.5m must be fitted with fall arrest device Access Ladders to BS4211:1994. Standard lengths 3m - 6m Bolt on ladder feet. Cage hoops square or round. Climbing ladders with or without caging can be manufactured and supplied to suit any application.
Ladders to B.S standards with fixings to ‘bolt on’ climbing rungs are all available and made to the customer's requirements.

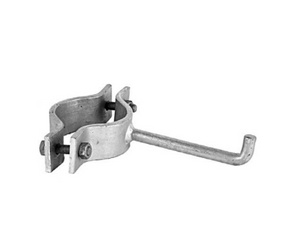

Bolt on Climbing Rungs
Galvanised to BS EN ISO 1461:1999 16mm dia step 160mm long.
Wooden Pole Climbing Rung - Galvanised to BS EN ISO 1461:1999 16mm dia step 160mm long.

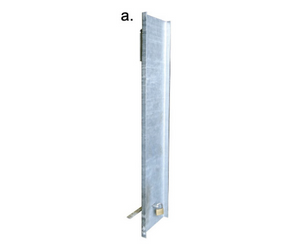

Ladder Anti-Climb Plate
5/ACP/001. 2400mm long Lockable (Padlock not supplied). Does not impede feeders.
Please specify the width of the ladder, the width of the stringer, the rung size and the pitch of the rung.

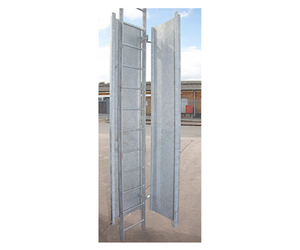

Ladder Anti-Climb Door
5/ACD/001. 2450mm long Hinged Lockable.
Please specify the width of the ladder, the width of the stringer, the rung size and the pitch of the rung. Lock excluded.

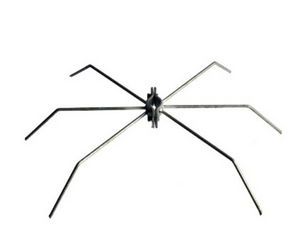

Bolt on Anti-Climb Spike
Galvanized to EN ISO 1461:1999
Made to fit all sizes of circular and angle legs. Please specify the leg size.

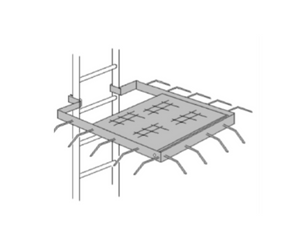

Anti-Climb Hoop
5/ACH/001. Galvanised to BS EN ISO 1461:1999.
Brackets to suit 3 and 4 leg Angle or Tube towers.

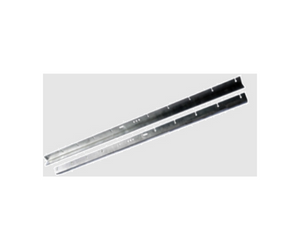

Barbed Wire and Brackets
Galvanised to BS EN ISO 1461:1999.
Brackets to suit 3 and 4 leg Angle or Tube towers. 2/ACW/200 – Barbed wire 200m reel.

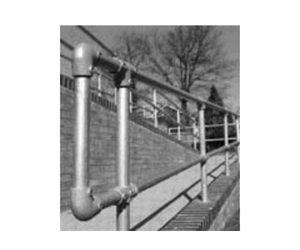

Handrail
Galvanised to ENISO 1461:1999.
Ideal for building handrails. Full range available to order.

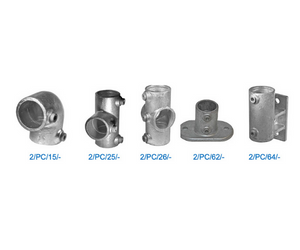

Pipe Clamps
Galvanised to BS EN ISO 1461:1999.
Designed for handrails, access platforms and guard rails Standard sizes available for 33.7, 42.4 and 48.3Ø tubes. Individual fittings and tubes from stock or designed and manufactured for bespoke applications. Suffix part number with 6/7/8 as above handrail sizes.
Please note: We can supply other size handrails and clamps. Those listed are just some of the common sizes.

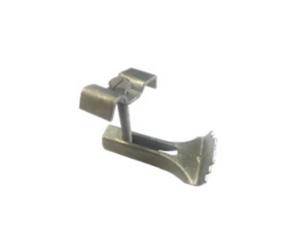

Platform Fixing Clips
Used to fix down open steel flooring. We can also supply flooring to customer requirements.

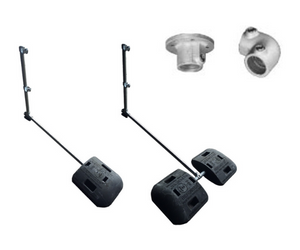

Free Standing Handrail System
Galvanized to ENISO 1461:1999c. The free standing handrail system does not penetrate the roof membrane.
Only available in 48.3Ø.

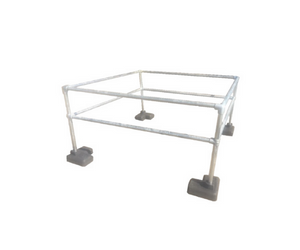

Skylight Protection Guard
The safety solution for Skylight Fall Protection. Designed specifically to prevent falls through skylights.
Freestanding and eliminates the risk of damage to the roof membrane.
Suitable for use on all roof surfaces with a maximum of 3 degrees.
Kee Dome—48.3 O/D tube.
Kee Dome Mini—33.7 O/D tube.
Various sizes are available and are designed around the standard tube lengths of 1.5, 2.0 or 3.2 metres. An optional gate can be incorporated for access to roof hatches.
Mini kits c/w mesh on top.
