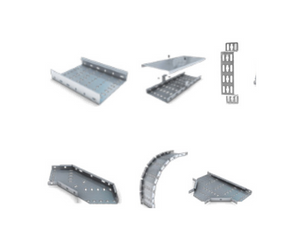

Cable Tray Heavy Duty
Galvanised to BS EN ISO 1461:1999.
Type A trays are designed to carry heavier cables with less support than a standard tray. The depth of the flange is 50mm with a return of 32mm means easier alignment when joined and adds greatly to the overall strength of the installation.
Type B trays are 25mm in depth with an 8mm return. To order couplers c/w fixings bolts request: 4/CTY/013 Type A 4/CTY/014 Type B For ventilated covers change the part number suffix from C to VC. Standard cover depth 22mm Standard tray length 3 metres.

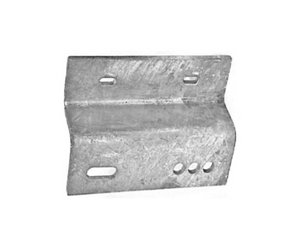

Vertical Cable Tray Mounting Brackets
Galvanised to BS ENISO 1461:1999.
Attach to 2000 Series Vertical Poles. For Vertical Cable Tray Bracket Kit comprising: 2 Brackets and 4 Bolts order 4/CTY/SFV/2000.
Order U Bolts separately to suit the size of the pole.

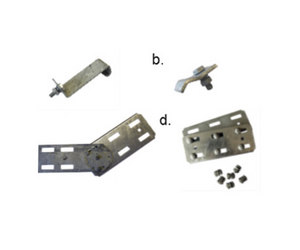

Heavy Duty Cable Ladder
Galvanised to BS EN ISO 1461:1999.
Slotted side rails. Rung slots 35mm x 11mm. Standard ladder length 3 metres.
Use in conjunction with the our cable support system.

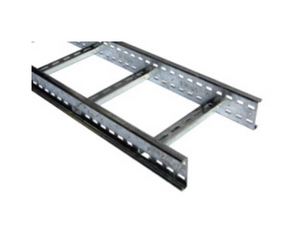

Cable Ladder
Flat Bend

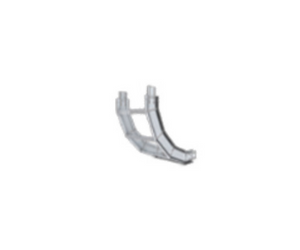

Outside and Inside Riser

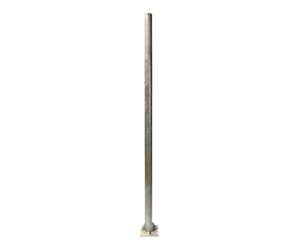

Cable Support System-Gantry Poles
Galvanised to BS EN ISO 1461:1999. CHS S235JR BS EN 10219.
14mm holes for fixing bolts. Heavy-duty gantry poles have gussets/stiffeners.

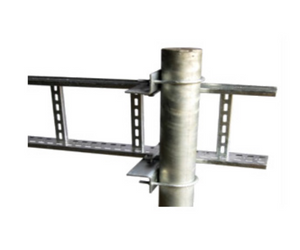

Single Vertical Support Kit

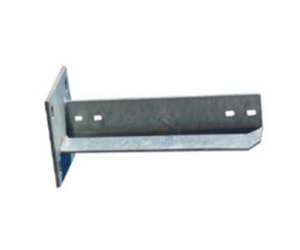

Single Horizontal Support Kit

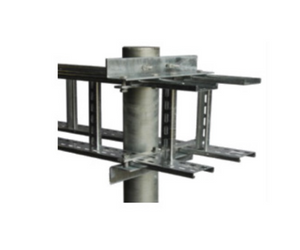

Double Vertical Support Kit

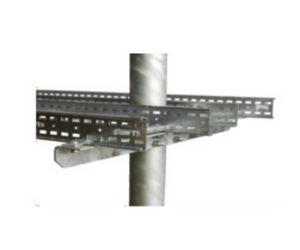

Double Horizontal Support Kit

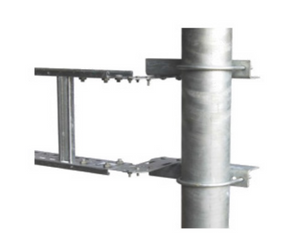

Leg Fixing Brackets
Supplied with 2 swivel brackets and bolts. Use 12mm fixings, order separately.

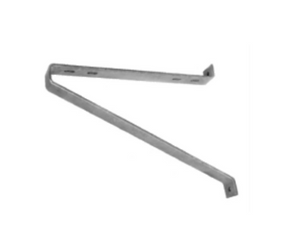

Horizontal Wall Fixing Kit

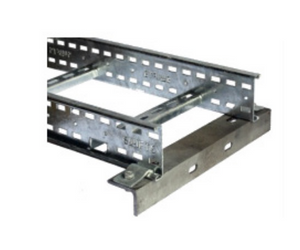

Horizontal End Wall Fixing Bracket
Supplied with 2 hold down brackets and bolts.

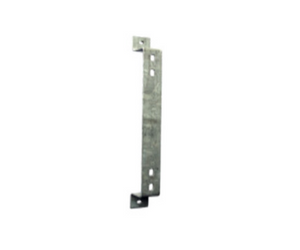

Vertical Wall Fixing Bracket

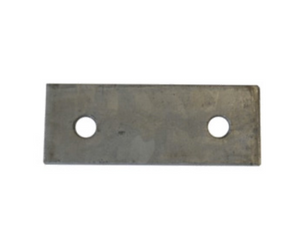

Pack Plates
Galvanized to BS ENISO 1461:1999
Ideal for supporting Cable Tray to gantry poles. Holes 14mm for 12mm fixings.

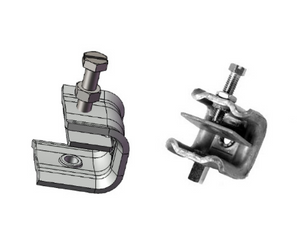

Feeder Clamps
Galvanised after manufacture to BS729 (DIN EN ISO 1461)
Stainless steel bolt, clamping up to 21mm thick.

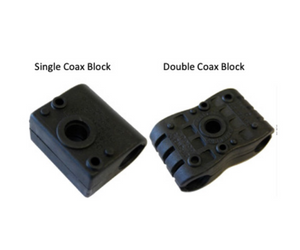

Coax Blocks
Material: Polypropylene
Single and double.
Cable Straps
Galvanised after manufacture to BS729 (DIN EN ISO 1461)
Stainless steel bolt, clamping up to 21mm thick.

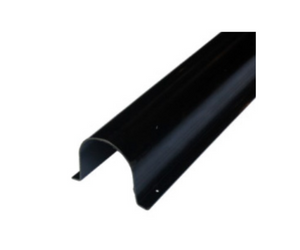

Cable Guard
A cable guard is a plastic cable protection capping profile to protect cables on poles and walls.
Flat flanges on cable guard for walls for a secure fixing. Supplied in perforated 3m lengths. All cable guards are supplied with screw fixing holes for easy installation. Cable guards can also be used to protect other utility supplies on walls i.e gas, oil and water.
Highly shock resistant and easily installed. Lightweight and easy to transport. Angled flanges on cable guard for wooden poles

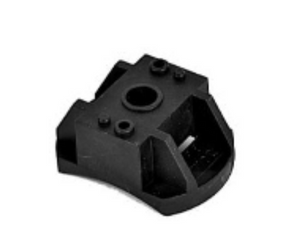

Cable Support Saddles
Cable support saddles provide an economical fixing for supporting studs onto numerous types of legs or posts.
Stainless steel banding and clips act as the fixing whilst a hexagonal recess in the saddle accommodates the bolt or nut.
A tensioning tool incorporating cutters is used to install the banding and clips.

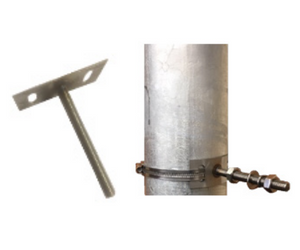

Cable Strap Stud
Use with stainless steel banding 2/CSS/SSB or stainless steel jubilee clips which form around the tower leg

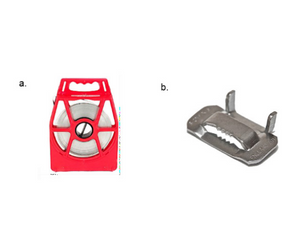

Banding Coil and Clip

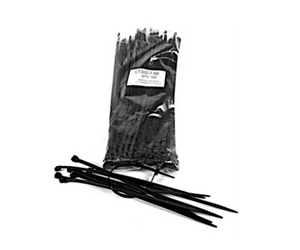

Cable Ties
Material 6/6 Nylon (Black).
UV resistant with a temperature range of -40°C to +85°C.
Also available are Cable Tie Markers in ‘letters‘ or ‘numbers‘ for identification.

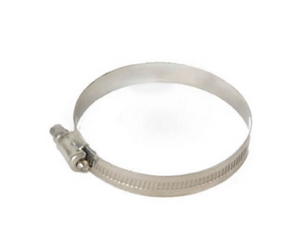

Hose Clip
Stainless Steel, 7mm hexagonal head screw with screwdriver slot.
Other sizes are available to order.

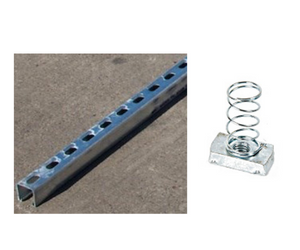

Channel Support System
Galvanised to BS 6949 - 1988.
The quick and easy way to build a variety of supports for electrical, mechanical and industrial services.
The basic parts of channels, spring nuts and plate washers will form many an installation. Channel can be supplied cut to length, as required, with other sizes available to order.
